Product Overview
SENTINUS is an ultra-fast AI-assisted X-ray body screening system designed for correctional facilities, detention centers, border control points and other high-security environments where every person must be screened quickly, consistently and with clear visual evidence.
The system performs a sub-second full-body X-ray scan with ultra-low radiation dose and uses A-EYE software to assist operators in detecting threats and contraband concealed in or on the human body.
Unlike conventional body scanners that rely on routine full-image interpretation, SENTINUS is built around an evidence-focused workflow. Suspicious regions are displayed locally against the outline of the human body, helping the operator focus on visual evidence, confirm the result and make the final decision with greater speed and confidence.
AI-Assisted Evidence Workflow
SENTINUS is engineered to support high-confidence people screening without placing the full burden of image interpretation on the operator. After each scan, A-EYE software analyzes the X-ray image and highlights areas that may require attention. The operator is presented with focused visual evidence rather than having to rely only on continuous manual review of the complete full-body image.
This approach helps reduce routine workload, improve consistency between operators and support a more privacy-sensitive review process. The system does not remove operator responsibility. Instead, it structures the review, localizes suspicious findings and provides the visual context needed for operator confirmation according to facility procedures.
Screening Process and Applications
The system is intended for detecting threats and contraband concealed under clothing, attached to the body, inserted into body cavities or swallowed. This makes SENTINUS especially relevant for inmate intake, transfer areas, visitor screening, staff screening and other correctional workflows where concealed contraband remains a persistent operational risk.

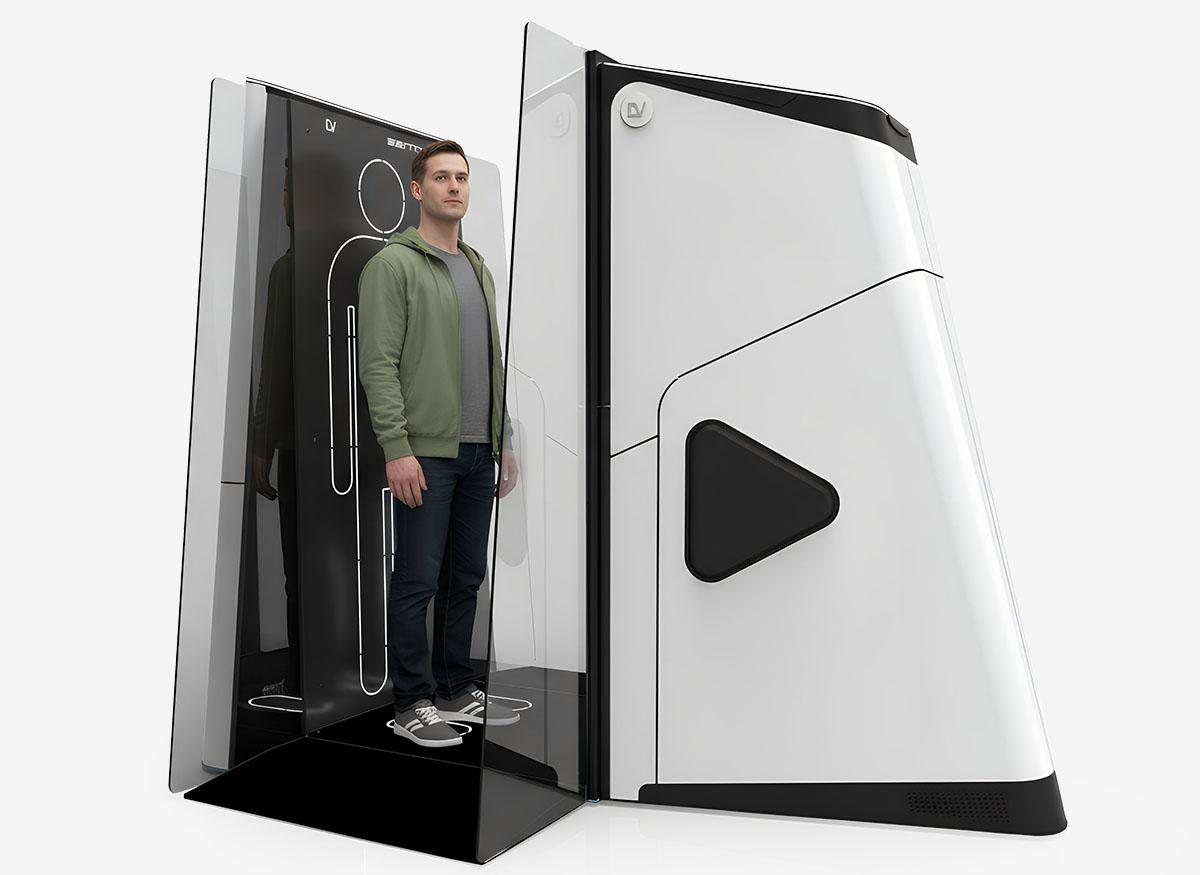

During screening, the person passes through the open inspection area while the system performs a high-speed X-ray scan. The short stillness time helps maintain the natural flow of people and reduces delays associated with traditional full-body X-ray inspection, while ultra-low dose technology supports frequent use in controlled security environments.
Data & System Management
SENTINUS is designed for integration into facility-level security operations. The software environment supports scan history, image archive work, user roles, access control and review workflows for operators, supervisors and administrators. This allows facilities to manage screening data, review previous scans and maintain traceable decision-making across daily operations.
By combining high-speed scanning, medical-grade spatial resolution, AI-assisted threat recognition and a contactless pass-through workflow, SENTINUS helps U.S. correctional facilities improve contraband detection, reduce inspection bottlenecks, support staff efficiency and create a more consistent people screening process.
Detected threats:
- Explosives (solid, liquid)
- Firearms and bladed weapons
- Illicit drugs and narcotics
- Contraband concealed internally
- Electronic devices
- Non-metallic objects (ceramics, plastics)
Detection tools:
Smart threat detection
DRUGUARD – drug detection
Key features
Sub-second X-ray capture
Captures a full-body X-ray image in a fraction of a second, helping maintain fast movement through correctional and high-security screening points.
A-EYE assisted threat recognition
Uses AI-assisted image analysis to identify suspicious regions and support detection of contraband concealed in or on the human body.

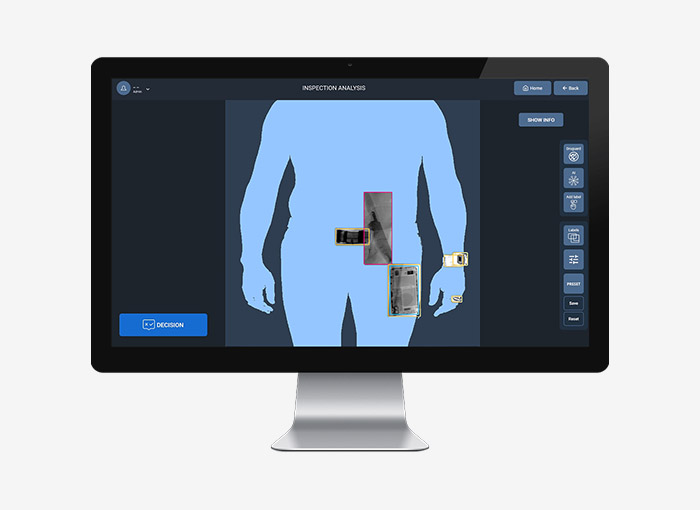

Localized visual evidence
Displays potential threats as focused visual evidence against the outline of the human body, helping operators confirm findings faster and with greater confidence.
Operator-confirmed decision-making
Structures the screening review without removing operator responsibility. The system highlights evidence while the trained operator makes the final decision.
Ultra-low dose people screening
Designed for frequent security screening with an ultra-low X-ray dose and safety controls suitable for controlled people-screening environments.
Open, wheelchair-accessible design
Fully compliant with U.S. ADA standards for universal access.
Technical data
Scan Performance
| Screening type | Full-body X-ray people screening |
| Scan workflow | Contactless pass-through inspection |
| Scan time | Sub-second X-ray capture |
| Person stillness time | Approx. 300 ms |
| Scan result availability | Under 1 second |
| Throughput | Up to 500 persons per hour |
| Dose profile | Ultra-low dose people screening |
Imaging and Detection
| Detector type | Medical-grade digital X-ray detector |
| Imaging capability | High-resolution full-body X-ray imaging |
| Image processing | A-EYE assisted image analysis |
| Detection workflow | Localized suspicious region highlighting |
| Visual review format | Threat evidence displayed against a human body outline |
| Operator role | Operator-confirmed decision-making |
Dimensions
| Scanner dimensions | |
|---|---|
| Width | 1100 mm |
| Height | 2300 mm |
| Overall length | 2900 mm |
| Mobility | Integrated caster wheels |
Operation and Control
| Control mode | AI-assisted evidence review |
| Operator interface | Tablet control and workstation control |
| Review workflow | Evidence-based operator review |
| Data workflow | Scan history and image archive support |
| Accessibility | Open wheelchair-accessible inspection area |
| Application environment | Correctional facilities, detention centers, border control and high-security sites |
Scan Performance
| Screening type | Full-body X-ray people screening |
| Scan workflow | Contactless pass-through inspection |
| Scan time | Sub-second X-ray capture |
| Person stillness time | Approx. 300 ms |
| Scan result availability | Under 1 second |
| Throughput | Up to 500 persons per hour |
| Dose profile | Ultra-low dose people screening |
Imaging and Detection
| Detector type | Medical-grade digital X-ray detector |
| Imaging capability | High-resolution full-body X-ray imaging |
| Image processing | A-EYE assisted image analysis |
| Detection workflow | Localized suspicious region highlighting |
| Visual review format | Threat evidence displayed against a human body outline |
| Operator role | Operator-confirmed decision-making |
Dimensions
| Scanner dimensions | |
|---|---|
| Width | Approx. 43.3 in |
| Height | Approx. 90.6 in |
| Overall length | Approx. 114.2 in |
| Mobility | Integrated caster wheels |
Operation and Control
| Control mode | AI-assisted evidence review |
| Operator interface | Tablet control and workstation control |
| Review workflow | Evidence-based operator review |
| Data workflow | Scan history and image archive support |
| Accessibility | Open wheelchair-accessible inspection area |
| Application environment | Correctional facilities, detention centers, border control and high-security sites |
Accessories
The unique AI algorithms developed by LINEV Systems provide automatic detection and indication of the prohibited items and threats on or inside the human body and enhance the operator’s detection abilities by highlighting threats with colour coded boxes.
DruGuard® is unique in its algorithm processing ability to detect internally concealed narcotics. DruGuard® is designed to keep the operator engaged in the image analysis process while providing specific tools such as the probability of detection and location of detected narcotics or drugs.
