Datasheet

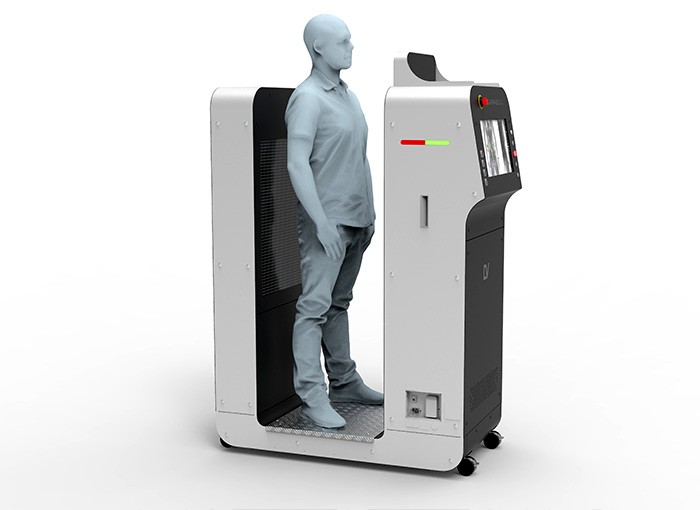

CLEARPASS Ci is the world’s most advanced, mobile, single module bodyscanner, specially designed for the detection of contraband “on” or “inside” the human body, by allowing selective area focused screening, which reduces screening and overexposure to other parts of the body.
This security bodyscanner provides proven, world class, superior X-ray image quality and resolution. Leading the industry with the most effective solution for the detection of drugs, weapons, precious stones, metals, electronic devices and other threats such as liquid capsule contraband. More about bodyscanners for security from Linev Systems here.
CLEARPASS Ci is built on LINEV Systems legacy of industry leading image quality and resolution delivering the most effective X-ray inspection solution for the detection of internally concealed drugs, weapons, metal objects, and electronic devices.
CLEARPASS Ci Options
- Exceptional mobility
- Advanced operator usage data reporting software
- Small footprint (9.4 sf. / 0.85m²)
- Easy, one person plug & play set up
- Easy scan area selection for operator user friendliness
- Meets/Exceeds IEEE N42.47-2010 ANSI
- Software Upgrade
- Fingerprint Scanner
- Bar code Reader
- Passport Reader
- Facial Recognition Camera
- Intercom System
- Touchscreen Panels
- Laser Printer
- Multi-Operator Function
- Network Integration
CLEARPASS DMS
CLEARPASS DMS can unite X-ray scanners from distant locations into one network keeping track of the total X-ray exposure dose for each inspected person even when the person undergoes a security screening in different locations. CLEARPASS DMS synchronizes the information: inspected people’s accounts, scan records, and X-ray images between all connected devices. It is a set of applications used to run X-ray people screening systems. The system allows operators to inspect people and view their accounts, perform a security screening, and view the obtained X-ray images
CLEARPASS DMS include at least three levels of controlled access including the following:
- An “Operator” level for making scan, creating and filing reports and saving images as required.
- A “Supervisor” level for supervisory staff to update subject information, create / update operators, review images and file data and monitor all operators’ activity and data collected
- An “Administrator” level to create/update/delete user group members with different levels of access, view audit logs, view images, save images to external drives and generate reports
Detected objects:
- Explosives solid or liquid
- Weapons guns and knives
- Electronics and cell phones
- Narcotics and drugs
- Precious stones
- Ceramic and plastics
Tools:
Smart threat detection
DRUGUARD – drug detection
Key features
Superior high quality images
Smart HD images for increased penetration and resolution
Fastest scan time in the industry
Only 3 second scan acquisition time
Contraband detection software
Patented advanced software aiding operators in detecting contraband
Automatic dose selection
Automatic dose selection based on personal body mass index
ANSI/HPS N43.17-2009
Fully corresponds to Class B – partial body scanner
Mobile through standard doorway
Easy to move and relocate to any position
Video
Technical data
Scan settings
| Selectable scan settings | 0,25 – 1,0 μSv |
| Dose per scan | 0,25 – 10,0 μSv |
| Scan and Image Time | 2 – 4 seconds |
| Wire Detectability | Up to 40 AWG |
| Minimum Throughput | 240 scans per hour |
Scan area
| Width | 350 mm |
| Height | 250 mm |
| Weight Capacity | 300 kg |
Dimensions
| Scanner dimensions | ||
|---|---|---|
| Width | 660 mm | |
| Height | 1700 mm | |
| Length | 1320 mm |
Power
| Power Requirements | 120 VAC / 20 A |
| Consumption | 1 kVA maximum |
Scan settings
| Selectable scan settings | 0,25 – 1,0 μSv |
| Dose per scan | 0,25 – 10,0 μSv |
| Scan and Image Time | 2 – 4 seconds |
| Wire Detectability | Up to 40 AWG |
| Minimum Throughput | 240 scans per hour |
Scan area
| Width | 13.8″ |
| Height | 9.8″ |
| Weight Capacity | 660 lbs |
Dimensions
| Scanner dimensions | ||
|---|---|---|
| Width | 25.9″ | |
| Height | 66.9″ | |
| Length | 51.9″ |
Power
| Power Requirements | 120 VAC / 20 A |
| Consumption | 1 kVA maximum |
Accessories
The unique AI algorithms developed by LINEV Systems provide automatic detection and indication of the prohibited items and threats on or inside the human body and enhance the operator’s detection abilities by highlighting threats with colour coded boxes.
DruGuard® is unique in its algorithm processing ability to detect internally concealed narcotics. DruGuard® is designed to keep the operator engaged in the image analysis process while providing specific tools such as the probability of detection and location of detected narcotics or drugs.
