CLEARPASS Full Body X-ray Scanner from LINEV Systems answers the calls and demands of Corrections, Transportation as well as Customs and Border Protection professionals for a compact scanning technology with advanced, high-resolution imaging performance and advanced detection capabilities.
The inspected person in CLEARPASS remains stationary and the bodyscanner provides industries’ fastest image acquisition time of 3 seconds.
This new revolutionary X-ray inspection system is rugged, fast, and non-contact! The unique pass-through design and prison-proven LINEV Systems exclusive automatic threat detection algorithms facilitate the rapid, non-intrusive inspection of people attempting to conceal contraband items on or inside their bodies.
Options
- Superior imaging
- Stationary scanning
- UV self-sanitization
- Intuitive operator interface
- Screened person remains still
- Fastest imagery processing in the industry: 3-second scan time
- Standalone or integrated operator’s workstation
- Compact footprint and low height
- Wheelchair compatible (US ADA compliant)
CLEARPASS DMS

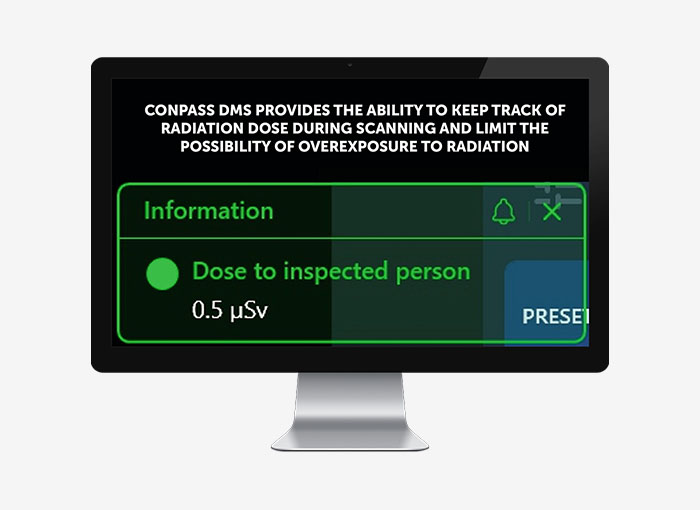

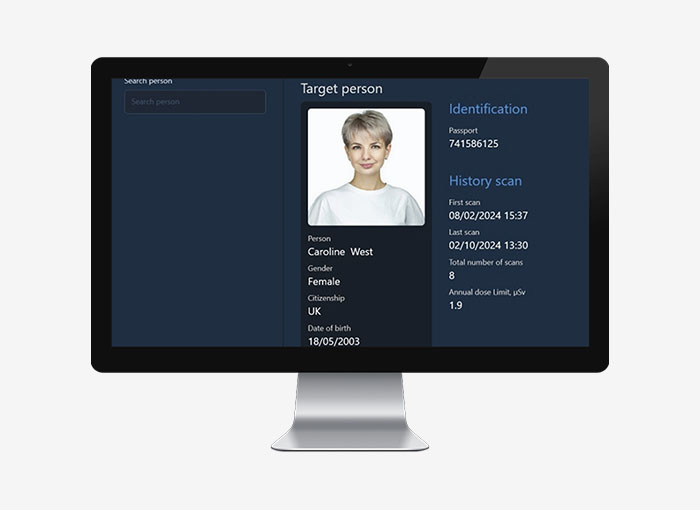

CLEARPASS DMS can unite X-ray body scanners from distant locations into one network keeping track of the total X-ray exposure dose for each inspected person even when the person undergoes a security screening in different locations. CLEARPASS DMS synchronizes the information: inspected people’s accounts, inspection scan records, and X-ray images between all connected devices. It is a set of applications used to run X-ray people screening systems. The system allows operators to inspect people and view their accounts, perform a security screening, and view the obtained X-ray images.
CLEARPASS DMS includes at least three levels of controlled access with the following:
- An “Operator” level for making X-ray scan, creating and filing reports and saving images as required.
- A “Supervisor” level for supervisory staff to update subject information, create / update bodyscanner operators, review images and file data and monitor all operators’ activity and data collected
- An “Administrator” level to create/update/delete user group members with different levels of access, view audit logs, view images, save images to external drives and generate reports
Detected objects:
- Explosives solid or liquid
- Weapons guns and knives
- Electronics and cell phones
- Narcotics and drugs
- Precious stones
- Ceramic and plastics
Tools:
Smart threat detection
DRUGUARD – drug detection
Key features

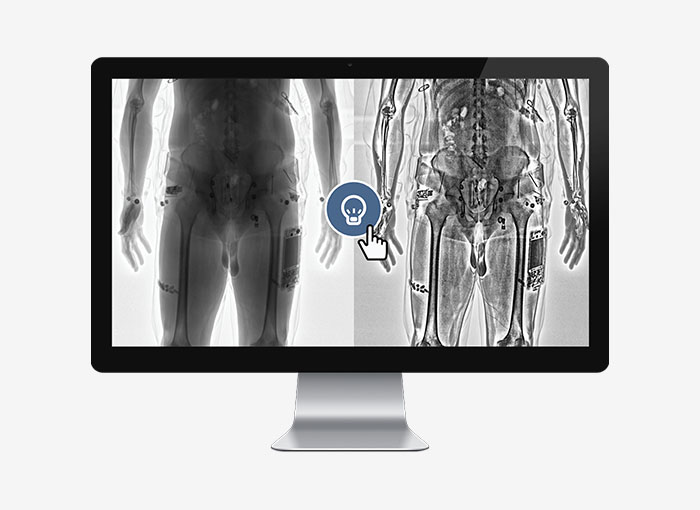

Superior high quality images
Smart HD images for increased penetration and resolution
Fastest scan time in the industry
Only 3 second scan acquisition time
Contraband detection software
Patented advanced software aiding operators in detecting contraband
Static screening
Person remains still
ANSI/HPS N43.17-2009
Fully compliant to ANSI standards
Wheelchair friendly
U.S ADA standard for wheelchair compliancy
Video
Technical data
Scan settings

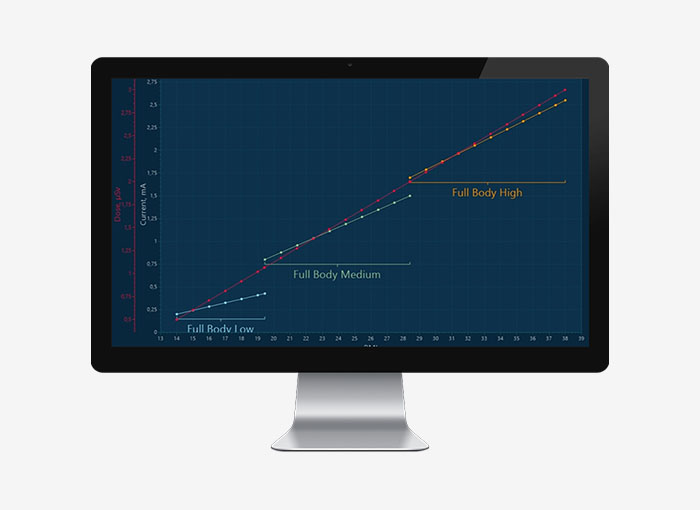

| Selectable scan settings | 0,25 – 1,0 μSv |
| Scan and Image Time | 2 – 4 seconds |
| Wire Detectability | Up to 40 AWG |
| Steel Penetration | Up to 36 mm |
| Minimum Throughput | 240 scans per hour |
Dimensions
| Scanner dimensions | ||
|---|---|---|
| Width | 1524 mm | |
| Height | 2400 mm | |
| Length | 2200 mm |
Power
| Power Requirements | 120 VAC / 20 A |
| Generator | 160 kV |
Scan settings
| Selectable scan settings | 0,25 – 1,0 μSv |
| Scan and Image Time | 2 – 4 seconds |
| Wire Detectability | Up to 40 AWG |
| Steel Penetration | Up to 1.42″ |
| Minimum Throughput | 240 scans per hour |
Dimensions
| Scanner dimensions | ||
|---|---|---|
| Width | 60.0″ | |
| Height | 94.5″ | |
| Length | 86.6″ |
Power
| Power Requirements | 120 VAC / 20 A |
| Generator | 160 kV |
Accessories
The unique AI algorithms developed by LINEV Systems provide automatic detection and indication of the prohibited items and threats on or inside the human body and enhance the operator’s detection abilities by highlighting threats with colour coded boxes.
DruGuard® is unique in its algorithm processing ability to detect internally concealed narcotics. DruGuard® is designed to keep the operator engaged in the image analysis process while providing specific tools such as the probability of detection and location of detected narcotics or drugs.
