Description
DTP 320DVB especially designed for rapid bus screening in a border checkpoints but can also using for screening empty vehicle or vehicle with light cargo.
DTP 320DVB provides X-ray inspection of bus in two projections with high image detailing that significantly improve the detection capabilities, eliminate “the blind zones of an inspected vehicle and puts it at the top of this class.
The system has a high throughput capacity up to 120 objects per hour, which avoids long queues in the control zone and dual-energy technology with automatic color coding and material discrimination. Systems can be powered by AI algorithm for automatic people detection to prevent illegal human trafficking.
The system is available in LV (singe view) version.
DTP 320DVB is used for full inspection of vans and all passenger vehicles including buses.

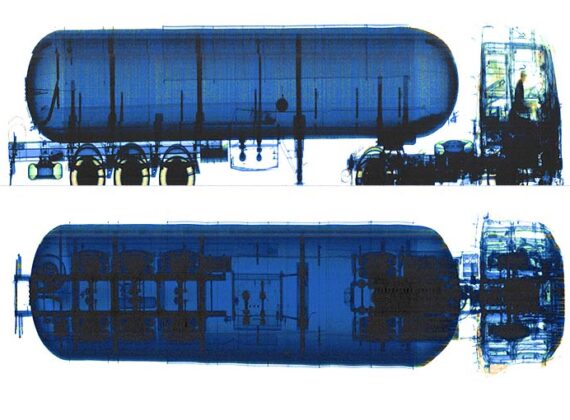

It provides X-ray inspection of vehicles in two projections (downward and lateral). Two imaging angles significantly improve the detection capabilities and eliminate “the blind zones” of an inspected vehicle, enabling X-ray beams to penetrate all parts of the vehicle (including fuel tank, seats, wheels, seats, motor, etc.).
A dual-energy technology with automatic colour coding and material discrimination allows distinguishing organic, nonorganic materials and metals, and helps to highlight all dangerous and prohibited items and objects hidden inside the vehicles.
The system helps to prevent illegal human trafficking, contraband and detect illegal drugs, weapons, explosives and other prohibited and dangerous objects.
This X-ray screening system produce such a low radiation dose that allows drivers and passengers safely stay in their cabins and vehicles during the inspection process, that, in combination with Drive-Through technology, offers increadible high throughput operation and health safety for passengers.
Options:
- Automatic number plate recognition system (ANPR)
- Container code recognition system for freight container numbers recording (ACCR)
- Under vehicle inspection system (UVIS)
- Integrated radiation portal monitor (IRPM)
- ID cards and passports reader
- Driver’s photo capture camera
Key features
Innovative drive-through scanning technology
Dual-view technology
Dual energy technology with color-coding
Screening of all types of vehicles with one portal
High quality X-ray imaging
Easy upgrade to DTP 7500/320DV
Technical data
Generator specifications
| X-ray generator anode voltage: | |
|---|---|
| X-ray source 1 | 320 kV |
| X-ray source 2 | 320 kV |
| Penetration (Steel) | 2.36″ |
| Number and type of projections | 2: Downward & Lateral |
Unit specifications
| Dimension of inspection tunnel: | |
|---|---|
| Width | 11.5″ |
| Height | 15.4″ |
| Scanning speed | 3.1 – 6.2 mph |
Operation
| Operating temperature | from +14 °F to +140 °F |
| Operating humidity | up to 90% |
Generator specifications
| X-ray generator anode voltage: | |
|---|---|
| X-ray source 1 | 320 kV |
| X-ray source 2 | 320 kV |
| Penetration (Steel) | 2.36″ |
| Number and type of projections | 2: Downward & Lateral |
Unit specifications
| Dimension of inspection tunnel: | |
|---|---|
| Width | 11.5″ |
| Height | 15.4″ |
| Scanning speed | 3.1 – 6.2 mph |
Operation
| Operating temperature | from +14 °F to +140 °F |
| Operating humidity | up to 90% |
