Description

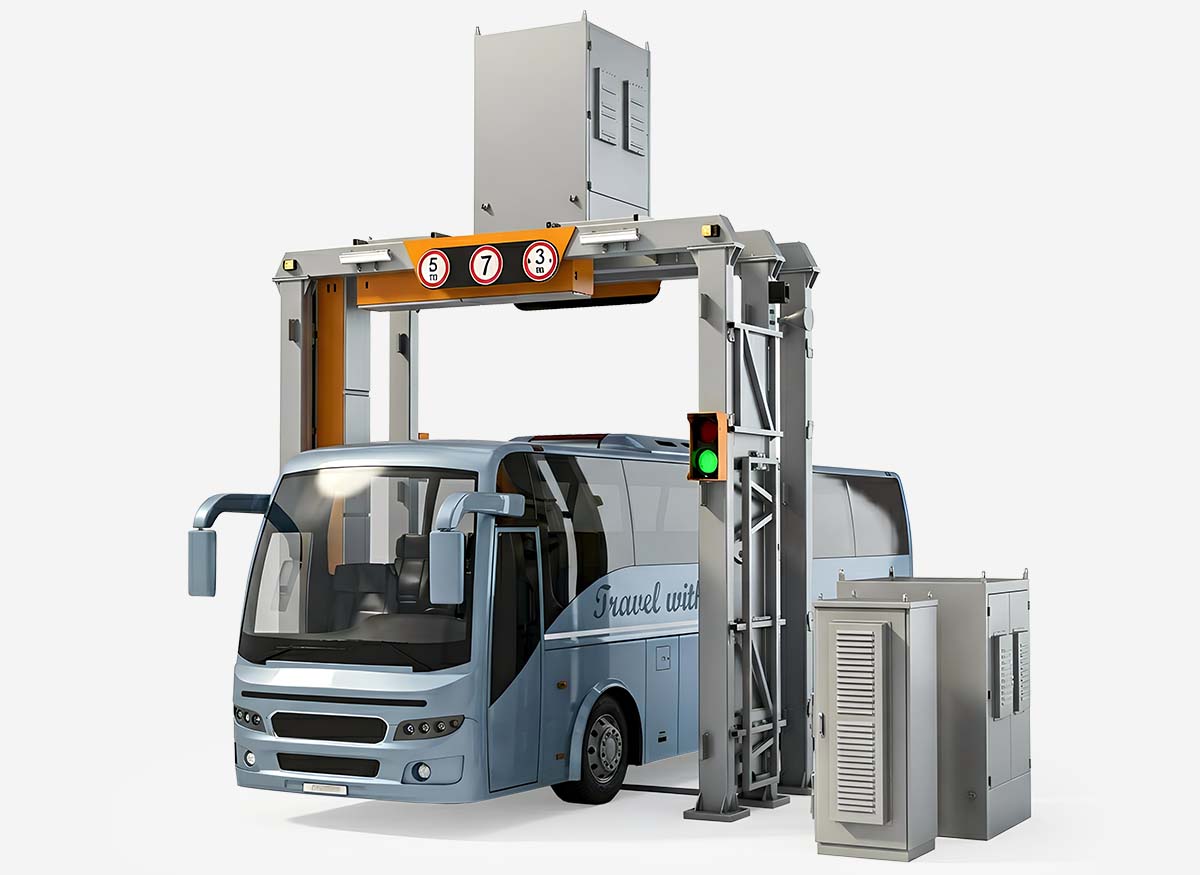

The MEAP 320DVB is one of the entry-level models in the MEAP (Multi-Energy Array Portal) family, providing a high-performance solution for vehicle inspection. Designed for safe and efficient screening of vehicles with passengers, including buses, vans, and passenger cars, it integrates multi-energy X-ray technology and AI-driven analysis to ensure high security while prioritizing safety for both passengers and operators during inspections. The MEAP 320DVB is perfect for environments where vehicles with passengers need to be screened quickly and safely without requiring passengers to exit the vehicle.
The MEAP platform is built on multi-energy X-ray sources, offering high resolution and multi-angle views that ensure precise material differentiation and enhanced threat detection. With Dual-View imaging, the system offers both vertical and lateral projections, maximizing coverage and eliminating blind spots during scans.
The MEAP 320DVB specifically targets rapid screening of buses at border checkpoints, though it is versatile enough to handle empty vehicles or light cargo vehicles. With dual-energy technology, the system automatically applies color coding and material discrimination to detect prohibited and dangerous items inside vehicles. Its capacity to detect hidden threats such as weapons, explosives, illegal drugs, and human trafficking sets it apart in the industry.
This system offers an impressive throughput capacity of up to 120 vehicles per hour, making it ideal for high-traffic areas, ensuring quick processing without compromising security or accuracy. The Drive-Through technology allows vehicles to be scanned while passengers remain inside, ensuring high throughput and maintaining health safety during inspections.
The MEAP 320DVB is used for full inspection of vans and all passenger vehicles, including buses, providing comprehensive security screening in busy transit environments.
It features dual-energy X-ray technology, allowing for downward and lateral projections of the vehicle. These two imaging angles significantly improve detection capabilities and ensure thorough scanning of all parts of the vehicle, including the fuel tank, seats, wheels, engine, and other critical components.
With the ability to distinguish between organic and inorganic materials and metals, the system’s material discrimination capabilities ensure accurate detection of hidden objects. Automatic color coding enhances this process by visually highlighting dangerous items.
Designed to prevent human trafficking and detect contraband, the MEAP 320DVB ensures that illegal drugs, weapons, and explosives are swiftly identified and flagged for further inspection.
The system is designed to emit extremely low radiation levels, allowing drivers and passengers to remain safely inside their vehicles during inspections. This feature, combined with Drive-Through technology, ensures that inspections are conducted efficiently, without compromising safety or throughput.
Options:
- Automatic number plate recognition system (ANPR)
- Container code recognition system for freight container numbers recording (ACCR)
- Under vehicle inspection system (UVIS)
- Integrated radiation portal monitor (IRPM)
- ID cards and passports reader
- Driver’s photo capture camera
Key Features
MEAP Platform Advantage
The MEAP 320DVB is part of the MEAP platform, offering modular scalability and the ability to evolve with growing security needs.
Drive-through Scanning
Vehicles are scanned while passengers stay inside, enhancing throughput and ensuring safety during inspections.
Dual-view Technology
Dual-view technology ensures no blind spots with vertical and lateral projections, providing more detailed vehicle scans.
Dual Energy with Color-Coding
Dual-energy X-ray technology with automatic color-coding improves material differentiation, allowing quick identification of threats.
Screening of All Vehicle Types
The system can inspect all vehicle types, including cars, vans, and buses, with one modular portal, offering flexibility and efficiency.
High Quality X-ray Imaging
With high-resolution scans and advanced material discrimination, the system ensures clear, detailed detection of concealed threats.
Technical data
Generator Specifications
| X-ray generator anode voltage: | |
|---|---|
| X-ray source 1 | 320 kV |
| X-ray source 2 | 320 kV |
| Penetration (Steel) | 60 mm |
| Number and type of projections | 2: Downward & Lateral |
Unit Specifications
| Dimension of inspection tunnel: | |
|---|---|
| Width | 4.17 m |
| Height | 4.65 m |
| Scanning speed | 5–10 km/h |
Operation
| Operating temperature | from -10°C to +55°C |
| Operating humidity | 0–99% (non-condensing) |
Generator Specifications
| X-ray generator anode voltage: | |
|---|---|
| X-ray source 1 | 320 kV |
| X-ray source 2 | 320 kV |
| Penetration (Steel) | 2.36″ |
| Number and type of projections | 2: Downward & Lateral |
Unit Specifications
| Dimension of inspection tunnel: | |
|---|---|
| Width | 164.56″ |
| Height | 183.07″ |
| Scanning speed | 3.1 – 6.2 mph |
Operation
| Operating temperature | from +14 °F to +140 °F |
| Operating humidity | 0-99% (non-condensing) |
- Enhanced threat detection for weapons, explosives, narcotics, and concealed contraband.
- Reduced bottlenecks at ports and border crossings through high-speed processing.
- Improved accuracy in material identification, distinguishing between organic, inorganic, and metallic substances with precision.
- Scalability and adaptability for evolving security challenges.
By adopting MEA-powered solutions, cargo screening facilities gain next-generation security capabilities, optimizing operational efficiency while staying ahead of modern threats in border security and trade compliance.
