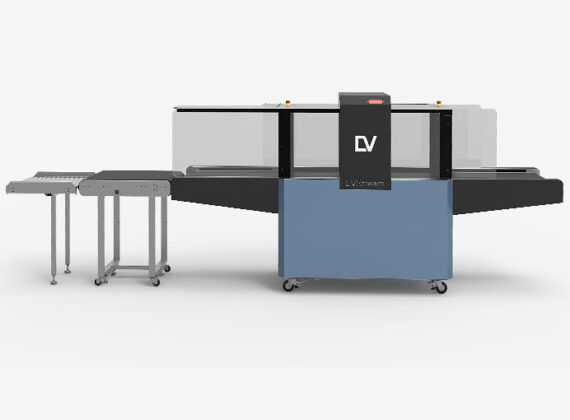

Peak-Flow Dual-View X-ray Security Gateway
High-traffic venues, schools, and public spaces need security screening that can keep pace with peak entry demand. LV STREAM is designed to keep bags moving through the checkpoint while A-EYE™ performs AI-assisted primary screening of X-ray data.
Dual-view X-ray imaging gives the system two physical views of each bag, helping reduce ambiguity caused by overlap, angle, or concealment. With richer X-ray data, A-EYE™ can analyze each bag more effectively and generate a clear / alert result for security response.
Instead of relying on operators to continuously interpret complex X-ray images, LV STREAM helps security staff focus on bags that require review, resolution, or secondary inspection. This reduces dependence on specialist image-reading skills, simplifies training, and helps lower operating burden.
LV STREAM is designed for everyday checkpoint items, including bags, backpacks, handbags, school bags, and carried personal items. Its mobile configuration supports fast deployment, flexible relocation, and movement through standard doorways for use across different indoor security locations.
Built for Peak Screening Demand
LV STREAM is more than a high-speed X-ray baggage scanner. It is a peak-flow screening solution designed for high-traffic, high-risk environments where bags must be screened quickly, consistently, and with less dependence on continuous manual image interpretation.
A-EYE™ analyzes every bag and helps identify items that may require security attention. Clear bags keep moving, while security attention is focused on the bags that require review.
Built on Dual-View X-ray Data
LV STREAM uses dual-view X-ray imaging to capture two physical views of each bag. This gives A-EYE™ more information than a single flat image and helps reduce ambiguity caused by object overlap, angle, or concealment.
AI Primary Screening
A-EYE™ performs primary analysis of X-ray data and generates a clear / alert result for security response. Human attention is directed to the bags that require review while trained personnel remain in control of alarm resolution and final response.
No Specialist Image Interpretation Required
Security staff do not need to continuously interpret every X-ray image. LV STREAM helps reduce dependence on specialist image-reading skills by using AI-assisted analysis to identify bags that need attention, helping simplify training and reduce operating costs.
Flexible for Real Checkpoints
Designed for fast deployment and flexible operation, LV STREAM fits into existing checkpoint layouts, can be moved or reconfigured as site requirements change, and can be transported through standard doorways for use in different indoor security areas.
What It Means for You
LV STREAM helps security teams screen bags faster, reduce routine manual image review, and keep entry lines moving during peak traffic. The result is a more efficient checkpoint workflow with stronger AI-assisted detection support and a smoother visitor experience.
Read less
Read more
Features:
- Peak-flow X-ray security gateway
- Dual-view X-ray bag screening
- A-EYE™-powered automatic threat detection
- AI primary screening with clear / alert result
- No specialist X-ray image interpretation required
- Reduced operator workload and simplified training
- Focused review of bags that require attention
- Screens bags, backpacks, handbags, school bags, and carried personal items
- Mobile configuration for flexible indoor deployment
- Transportable through standard doorways
- Integration with people screening and magnetometers
- Ideal for schools, venues, and public spaces
- Automatic alerts for weapons, flares, vapes, fireworks, and potential IEDs
Peak-Flow Screening Solution
Built to keep bags moving when screening demand is at its highest
Dual-View X-ray Imaging
Captures two physical views of each bag to reduce ambiguity caused by overlap, angle, or concealment
A-EYE™-Powered Primary Screening
Analyzes X-ray data and generates clear / alert results for fast security response
No Specialist Image Interpretation Required
Reduces dependence on continuous manual X-ray image review and helps simplify operator training
For Everyday Bags and Backpacks
Screens bags, backpacks, handbags, school bags, and carried personal items at busy checkpoints
Mobile, Doorway-Friendly Deployment
Supports flexible relocation through standard doorways for use across different indoor security locations
High Footfall baggage inspection system videos
High-Traffic Bag X-Ray Technical data
Scanning & Performance
| Screening concept | Peak-flow X-ray bag screening |
| Peak-flow operation | Built to keep bags moving when screening demand is at its highest |
| Conveyor speed | 0.7 m/s / 2.3 ft/s |
| Conveyor height | 713 mm / 28.1 in |
| Max load on conveyor | 180 kg / 397 lb |
A-EYE™ Based Automation
| Threat detection | Weapons, disassembled firearms, explosives, vapes, flares, and other threat indicators |
| Detection method | A-EYE™-powered analysis of X-ray data |
| Screening output | Clear / alert result for security response |
| Operator requirements | No specialist X-ray image interpretation required |
| Operator workflow | Focused review of bags that require attention |
Power Supply
| Input voltage | 100–240 VAC |
| Frequency | 50/60 Hz |
| Power consumption | Max 1.5 kVA |
Mobility & Deployment
| Installation | Plug-and-play, mobile-ready |
| Operational readiness | Under 15 minutes |
| Indoor deployment | Flexible relocation across different checkpoint locations |
| Doorway transport | Transportable through standard doorways |
X-Ray System
| X-ray imaging | Dual Energy, Dual View |
| Dual-view advantage | Two physical views help reduce ambiguity caused by overlap, angle, or concealment |
| X-ray source | 160 kV |
Inspected Items
| Bag types | Bags, backpacks, handbags, school bags, and carried personal items |
| Screening use | Everyday checkpoint items at schools, venues, and public spaces |
Image Output
| Monitor resolution | 22" Full HD LED display |
| Suspect bag review | X-ray image available for focused inspection |
Dimensions & Weight
| Width | 845 mm / 33.3 in |
| Height | 1325 mm / 52.2 in |
| Length | 2140 mm / 84.3 in |
| Weight | Max 480 kg / 1,058 lb |
Environmental Conditions
| Operating temperature | 0°C to +40°C / 32°F to 104°F |
| Storage temperature | -10°C to +50°C / 14°F to 122°F |
| Humidity (operating) | Up to 90%, non-condensing |
| Humidity (storage) | Up to 98%, non-condensing |
Scanning & Performance
| Screening concept | Peak-flow X-ray bag screening |
| Peak-flow operation | Built to keep bags moving when screening demand is at its highest |
| Conveyor speed | 2.3 ft/s |
| Conveyor height | 28.1 in |
| Max load on conveyor | 397 lb |
A-EYE™ Based Automation
| Threat detection | Weapons, disassembled firearms, explosives, vapes, flares, and other threat indicators |
| Detection method | A-EYE™-powered analysis of X-ray data |
| Screening output | Clear / alert result for security response |
| Operator requirements | No specialist X-ray image interpretation required |
| Operator workflow | Focused review of bags that require attention |
Power Supply
| Input voltage | 100–240 VAC |
| Frequency | 50/60 Hz |
| Power consumption | Max 1.5 kVA |
Mobility & Deployment
| Installation | Plug-and-play, mobile-ready |
| Operational readiness | Under 15 minutes |
| Indoor deployment | Flexible relocation across different checkpoint locations |
| Doorway transport | Transportable through standard doorways |
X-Ray System
| X-ray imaging | Dual Energy, Dual View |
| Dual-view advantage | Two physical views help reduce ambiguity caused by overlap, angle, or concealment |
| X-ray source | 160 kV |
Inspected Items
| Bag types | Bags, backpacks, handbags, school bags, and carried personal items |
| Screening use | Everyday checkpoint items at schools, venues, and public spaces |
Image Output
| Monitor resolution | 22" Full HD LED display |
| Suspect bag review | X-ray image available for focused inspection |
Dimensions & Weight
| Width | 33.3 in |
| Height | 52.2 in |
| Length | 84.3 in |
| Weight | Max 1,058 lb |
Environmental Conditions
| Operating temperature | 32°F to 104°F |
| Storage temperature | 14°F to 122°F |
| Humidity (operating) | Up to 90%, non-condensing |
| Humidity (storage) | Up to 98%, non-condensing |
Accessories
LV STREAM Operator View displays AI screening results as clear pass/alert markers, allowing the operator to monitor baggage flow without routine X-ray image interpretation and open the underlying X-ray evidence only when a flagged bag requires closer review.
Preventive maintenance solution by remote system monitoring software
The next generation of AI for automatic x-ray threat detection in cargo and baggage
Across the U.S., school administrators are facing growing pressure to protect students and staff from evolving security threats. From concealed weapons and disassembled firearms to homemade explosives, the risks entering through schoolbags are real and rising. Traditional methods often rely on human review, which is slow and prone to error.
Today’s leading security experts are turning to next-generation technologies like AI-powered X-ray screening systems. These systems use raw image data for real-time threat detection, identifying high-risk items faster and more accurately than the human eye ever could. This innovation is key to transforming school checkpoints into safe, efficient, and non-intrusive security gateways.
The LV STREAM solution by LINEV Systems combines the speed of 2000+ bag scans per hour with fully automated analysis — no operator interpretation required. Trusted by schools and venue security teams alike, it’s a smarter, safer way to protect what matters most.
