Datasheet

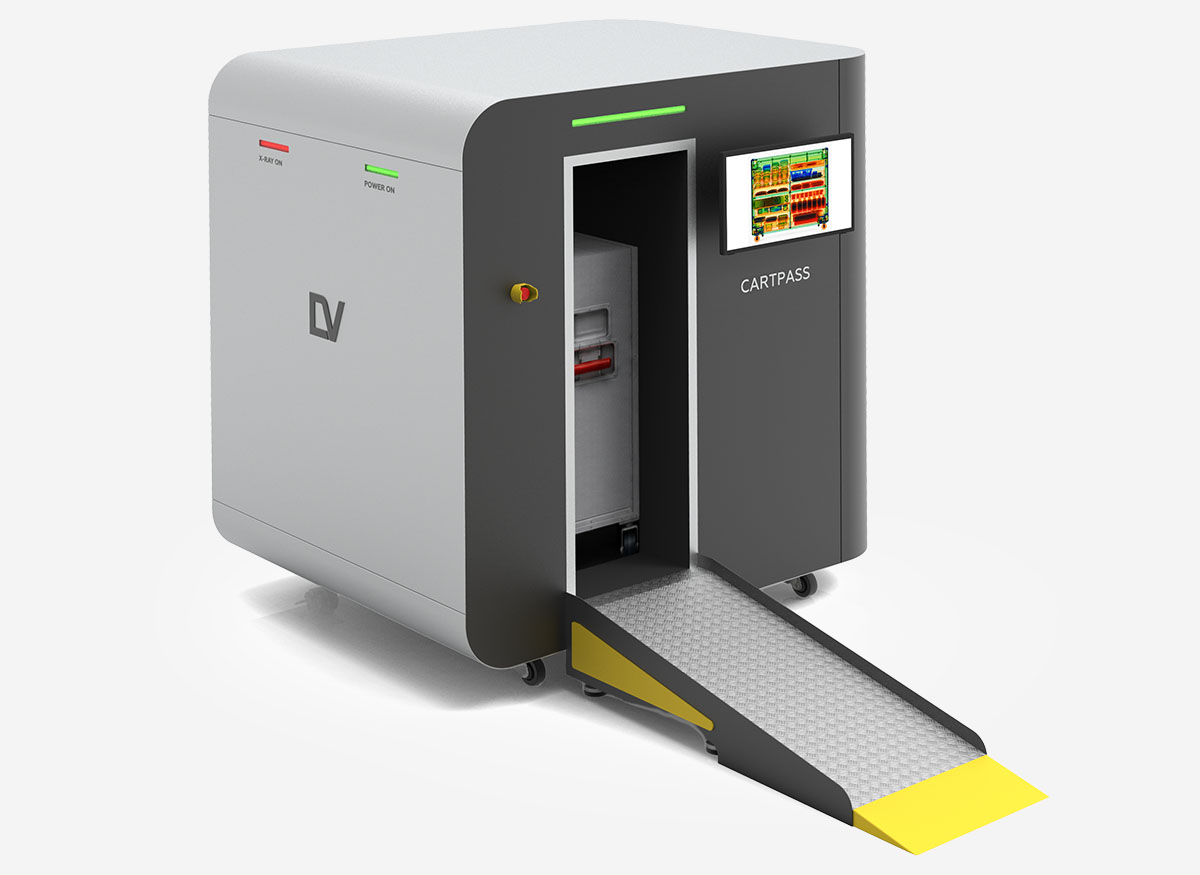

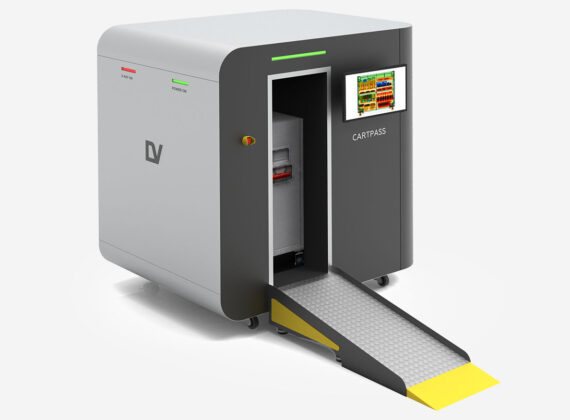

CARTPASS X is an AI-assisted X-ray screening system designed for the inspection of fully loaded airline catering trolleys and service carts. The trolley remains stationary on the internal platform during X-ray acquisition, allowing security personnel to inspect the load without routine unloading or conveyor transfer.
Full-height transmission X-ray imaging with dual-energy material differentiation is designed to cover the approved trolley envelope, including the loaded body, upper and ice compartments, corners, wheels, brakes and undercarriage. A-EYE™ provides indications for operator review, while the operator retains the final screening decision.
CARTPASS X is designed around the workflow of airline and business aviation catering operations. The trolley is loaded and unloaded through the same front access point, while a powered lateral sliding shielding door controls access to the inspection chamber. The normal screening cycle can be performed by one trained operator, from trolley identification and positioning through scanning, image review, decision recording and trolley removal.
The system combines X-ray evidence with trolley identification and inspection records. 1D/2D barcode identification can be linked with X-ray images, available A-EYE™ indications and the operator’s screening decision. Records can be stored, searched, retrieved and exported, supporting traceability throughout the inspection process.
Image-review functions include high- and low-penetration views, zoom, contrast adjustment, image recall and archive review. Unresolved findings can proceed through the customer’s defined secondary inspection procedure. The cabinet is equipped with transport castors for controlled relocation within the facility.
Functions:
- Stationary loaded-trolley X-ray inspection
- Full-height transmission X-ray imaging
- Dual-energy material differentiation
- High- and low-penetration image views
- Zoom and contrast adjustment
- Image recall and archive review
- Powered sliding shielding door with safety interlocks
- Front-mounted operator display and image-review interface
- 1D/2D barcode trolley identification
- Linking trolley identification with X-ray images and screening decisions
- A-EYE™ assisted image review
- Search, retrieval and export of inspection records
- Operator-controlled screening decision and secondary inspection workflow
- Controlled relocation on transport castors
Options:
- Additional workstation or remote review arrangements
- Customer-specific interfaces and repository integration
- Additional archive capacity and retention requirements
- Special trolley fixtures or non-standard trolley compatibility
- Enhanced service coverage and site-specific support
Key features
Loaded trolley screening
Inspect fully loaded airline catering trolleys without routine unloading, repacking or conveyor transfer.
Full-height dual-energy imaging
Transmission X-ray imaging with dual-energy material differentiation supports detailed review of mixed trolley loads.
Full trolley coverage
Designed to cover the loaded trolley body, upper and ice compartments, corners, wheels, brakes and undercarriage.
A-EYE™ assisted review
AI-assisted indications highlight areas requiring closer review while the operator retains the final screening decision.
Trolley identification & traceability
Link trolley identification, X-ray images, AI indications and screening decisions within a searchable inspection record.
Single-operator workflow
One trained operator can identify, position, scan, review, record the decision and remove the trolley from the same front access point.
Technical data
X-ray system
| X-ray system | 160 kV; dual-energy imaging |
| Imaging | Full-height transmission X-ray imaging |
Trolley handling
| Screening method | Stationary platform |
| Access | Single front access |
| Platform load rating | 200 kg, uniformly distributed |
Operator & identification
| Operator and image review | One operator; front display; A-EYE™ assistance |
| Identification and records | 1D/2D barcode; linked images and decisions |
Power supply
| Supply | Single-phase 230 VAC or 120 VAC |
| Frequency | 50/60 Hz |
| Apparent power | 0.9 kVA |
Dimensions
| Cabinet dimensions | |
|---|---|
| Width | 1,650 mm |
| Depth without ramp | 1,450 mm |
| Height | 1,700 mm |
| Overall dimensions | |
|---|---|
| Depth including ramp | 2,750 mm |
| Entrance opening | |
|---|---|
| Width | 500 mm |
| Height | 1,300 mm |
Configuration
| AI assistance | A-EYE™ |
| Trolley identification | 1D/2D barcode |
| Relocation | Transport castors for controlled repositioning |
X-ray system
| X-ray system | 160 kV; dual-energy imaging |
| Imaging | Full-height transmission X-ray imaging |
Trolley handling
| Screening method | Stationary platform |
| Access | Single front access |
| Platform load rating | 441 lb, uniformly distributed |
Operator & identification
| Operator and image review | One operator; front display; A-EYE™ assistance |
| Identification and records | 1D/2D barcode; linked images and decisions |
Power supply
| Supply | Single-phase 230 VAC or 120 VAC |
| Frequency | 50/60 Hz |
| Apparent power | 0.9 kVA |
Dimensions
| Cabinet dimensions | |
|---|---|
| Width | 65.0 in |
| Depth without ramp | 57.1 in |
| Height | 66.9 in |
| Overall dimensions | |
|---|---|
| Depth including ramp | 108.3 in |
| Entrance opening | |
|---|---|
| Width | 19.7 in |
| Height | 51.2 in |
Configuration
| AI assistance | A-EYE™ |
| Trolley identification | 1D/2D barcode |
| Relocation | Transport castors for controlled repositioning |
