Datasheet

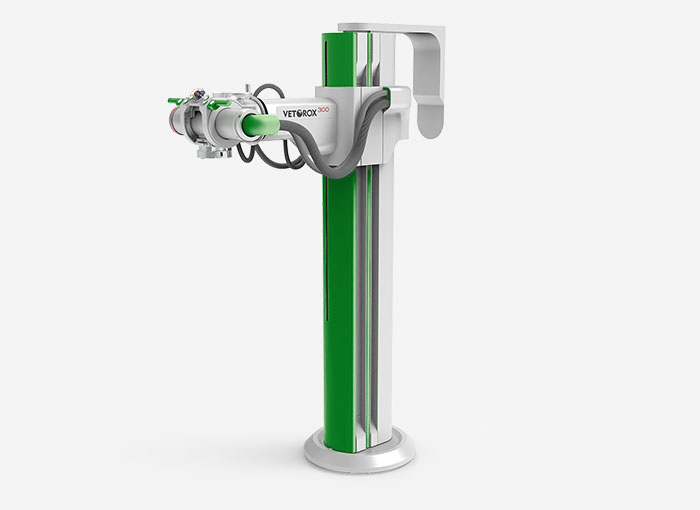

VETOROX 300 is a veterinary X-ray radiation therapy system designed for advanced radiotherapy applications. Operating at a maximum tube voltage of 290 kV, the system supports both superficial and orthovoltage radiotherapy for lesions requiring greater tissue penetration.
The system is intended for treatment of deep-seated tumors, large tumor masses, and selected bone-related conditions in companion animals. Its energy range allows delivery of therapeutic radiation to targets that cannot be adequately treated with lower-energy superficial systems.
With a focal distance range of 30–50 cm, VETOROX 300 provides the flexibility required for accurate positioning and controlled dose delivery in complex veterinary radiation oncology cases.
The combination of superficial and orthovoltage treatment modes makes VETOROX 300 suitable for demanding clinical protocols where deeper penetration and broader therapeutic capability are required.
Radiotherapy method
Orthovoltage radiotherapy uses medium-energy X-rays to treat tumors located beneath the skin surface. In veterinary oncology, this method is applied when greater penetration depth is needed for effective local tumor control.
Veterinary applications
VETOROX 300 is used in veterinary radiation oncology for treatment of deep tumors, large localized neoplasms, and selected bone-associated lesions in animals such as dogs and cats. It may be used as a primary treatment or as part of a combined therapy approach.
Read less
Read more
Diseases Treated:
- Deep-seated tumors
- Large tumor masses
- Soft tissue sarcomas
- Bone-associated tumors
- Post-surgical radiation therapy for residual tumor control
- Palliative radiation therapy for advanced neoplastic disease
Protected by US Patent: US 12.295.087 B2
Key features
100 kV Superficial Radiotherapy
Optimized for superficial radiation therapy, enabling precise treatment of skin tumors and dermatologic lesions while minimizing irradiation of deeper tissues.
Dual Radiotherapy Methods
Supports both surface and orthogonal linear radiotherapy, offering versatility in treating various animal conditions effectively.
Comprehensive Data Management
Complete patient data management, including treatment plans and session history, ensuring seamless clinical workflows.
High Precision X-ray Radiation Therapy
Ensures targeted radiation treatment, minimizing exposure to surrounding tissues while delivering effective therapy for animals.
Cost-Effective X-ray Radiation Therapy
A budget-friendly solution that minimizes infrastructure costs while maintaining high-quality radiation therapy for animals.
290 kV High-Energy Orthovoltage Therapy
Designed for complex veterinary oncology cases where deeper tumor localization requires higher-energy orthovoltage radiation therapy.
Technical data
Filtration
| Al (0.5 mm) | |
| Al (1.0 mm) | |
| Al (2.0 mm) | |
| Al (4.0 mm) | |
| Cu (0.5 mm) | |
| Cu (1.0 mm) | |
| Cu (1.5 mm) | |
| Cu (2.0 mm) | |
| Cu (3.0 mm) |
Applicators
| Shape | Size (cm) | SSD (cm) |
|---|---|---|
| Circle | 0.5 – 5.0 | 30 |
| Crescent-shaped | 1.0 × 3.2 | 30 |
| Oval | 1.4×2.0; 1.6×3.4; 2.5×4.8 | 30 |
| Rectangular | 4.0×4.0 – 20.0×20.0 | 30, 40, 50 |
Filtration
| Al (0.020 in) | |
| Al (0.039 in) | |
| Al (0.079 in) | |
| Al (0.157 in) | |
| Cu (0.020 in) | |
| Cu (0.039 in) | |
| Cu (0.059 in) | |
| Cu (0.079 in) | |
| Cu (0.118 in) |
Applicators
| Shape | Size (in) | SSD (in) |
|---|---|---|
| Circle | 0.20 – 1.97 | 11.8 |
| Crescent-shaped | 0.39 × 1.26 | 11.8 |
| Oval | 0.55×0.79; 0.63×1.34; 0.98×1.89 | 11.8 |
| Rectangular | 1.57×1.57 – 7.87×7.87 | 11.8, 15.7, 19.7 |
Related links
Technologies
VETOROX uses advanced X‑ray radiation therapy technology that delivers controlled, therapeutic doses of radiation to targeted tissues in animals. The system supports modern external beam radiotherapy techniques designed to maximise tumour control while sparing healthy tissue.
By combining precise dose delivery and customizable treatment parameters, VETOROX enables clinicians to adapt therapy to individual patient needs, improving treatment outcomes for a range of cancer types and other conditions responsive to radiation treatment. Clinical evidence in veterinary practice shows that radiation therapy significantly improves quality of life and survival times in animals with radiosensitive tumours, and can be integrated with surgery or chemotherapy for enhanced therapeutic impact.
The underlying radiation therapy methods are based on decades of research into tumour response to ionising radiation, demonstrating its effectiveness for long‑term tumour control in companion animals, particularly in soft tissue sarcomas, mast cell tumours, and oral cancers. Protocols delivered by systems like VETOROX are tailored to minimise radiation exposure to healthy structures and optimise therapeutic benefit.
