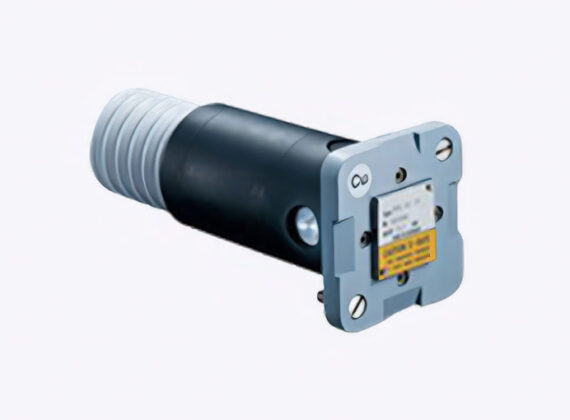

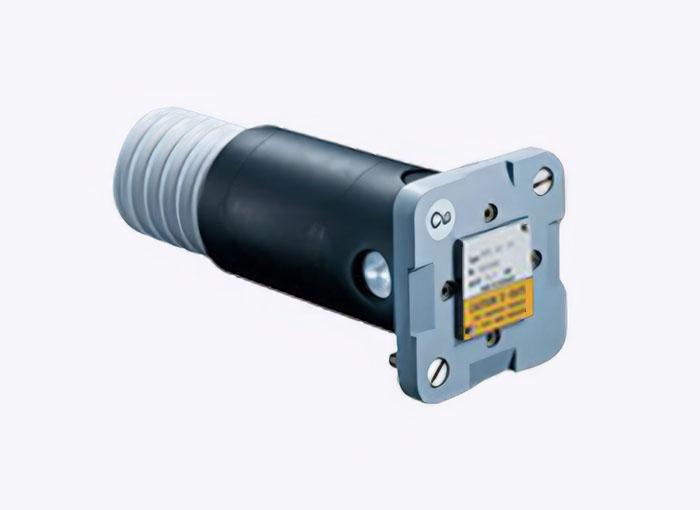

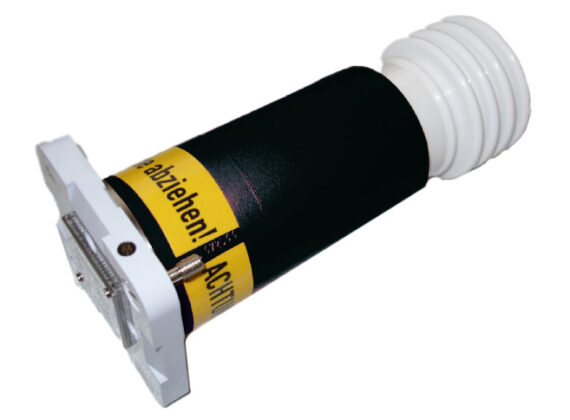

X-ray Tubes

LOT #X1002 | High-power ceramic X-ray tubes with various anode materials for precise diffractometry.

X-ray Tubes

Description

The X-ray tube is intended for forming radiation of different wavelength from 0.559 to 2.294 Å.

Anode material:

Cr	Power max: 1.3 kW Wavelength: 2.294 Å Energy: 5.415 keV
Fe	Power max: 0.9 kW Wavelength: 1.936 Å Energy: 6.404 keV
Co	Power max: 1.2 kW Wavelength: 1.789 Å Energy: 6.930 keV
Cu	Power max: 1.5 kW Wavelength: 1.541 Å Energy: 8.048 keV
Mo	Power max: 2.0 kW Wavelength: 0.709 Å Energy: 17.479 keV
Ag	Power max: 1.5 kW Wavelength: 0.559 Å Energy: 22.163 keV

Anode type:

²⁹Cu	Item No. 04.03.101-01
²⁷Co	Item No. 04.03.101-02
²⁶Fe	Item No. 04.03.101-03
²⁴Cr	Item No. 04.03.101-04
⁴²Mo	Item No. 04.03.101-05
Others	On request

Features:

Vacuum ceramic X-ray tube for diffractometry
Anode material: Cr, Fe, Co, Cu, Mo, Ag
Beryllium optical windows
0.4 × 8.0 focus size
Water cooling (with a replaceable filter)
Tube power up to 2000 W
