Description
Small-angles measurements (2θ < 10°) are accompanied by a significant increase in background
radiation associated mainly with out-of-focus radiation tails of the X-ray tube. A knife collimator
is used to reduce background radiation for measurements at narrow diffraction angles.
Alternatively, or as a supplement to the latter, an ASS antiscatter slit for narrow angles can be

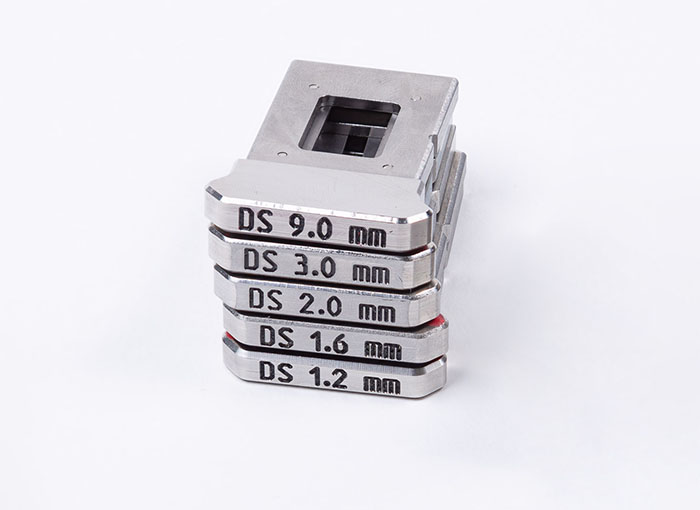

used. The ASS slits are installed into the incident beam mask socket (instead of BM1) and have
numerical markings that coincide with the DS divergence slit markings.
Distance between plates:
|
0.10 mm |
Item No. 03.02.100-01 |
|
0.20 mm |
Item No. 03.02.100-02 |
|
0.30 mm |
Item No. 03.02.100-03 |
|
0.60 mm |
Item No. 03.02.100-04 |
|
0.80 mm |
Item No. 03.02.100-05 |
|
Other |
On request |
Features:
- Plates material: tantalum, brass
- Distance between plates from 10 to 800 μm
- Installed on the X-ray source arm
- Simple installation and replacement
