Description

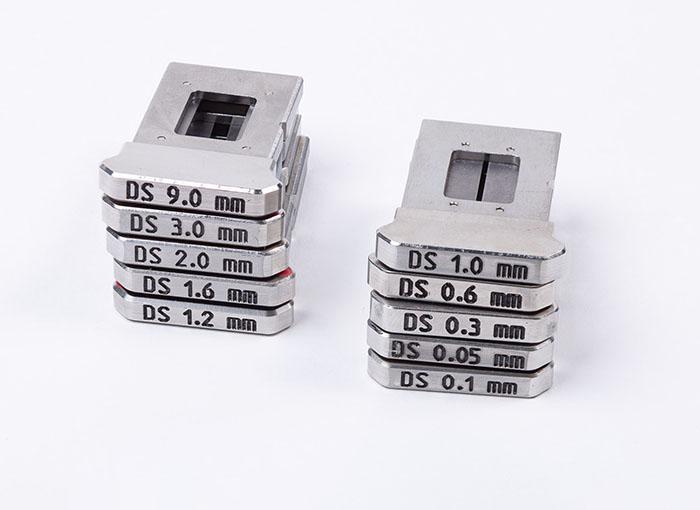

The divergence slit is a precision optical component
designed to form a well-defined, low-divergence X-ray
beam with a small cross-section. By restricting the
angular spread of the incident beam, it enables
high-resolution diffraction measurements while
maintaining optimal intensity.
Key Functions:
- Controls horizontal beam divergence (typically 0.1° to 2° selectable)
- Defines the irradiated area on the sample surface
- Reduces air scattering and parasitic radiation
- Improves peak-to-background ratio in diffraction patterns
Distance between plates:
|
1.0 mm |
Item No. 03.02.100-06 |
|
1.2 mm |
Item No. 03.02.100-07 |
|
1.6 mm |
Item No. 03.02.100-08 |
|
2.0 mm |
Item No. 03.02.100-09 |
|
3.0 mm |
Item No. 03.02.100-10 |
|
4.0 mm |
Item No. 03.02.100-11 |
|
6.0 mm |
Item No. 03.02.100-12 |
|
8.0 mm |
Item No. 03.02.100-13 |
|
9.0 mm |
Item No. 03.02.100-14 |
|
Others |
On request |
Features:
- Plates material: tantalum, brass
- Distance between plates: 1 to 9 mm
- Installed on the X-ray source assembly arm
- Simple installation and replacement
