Description

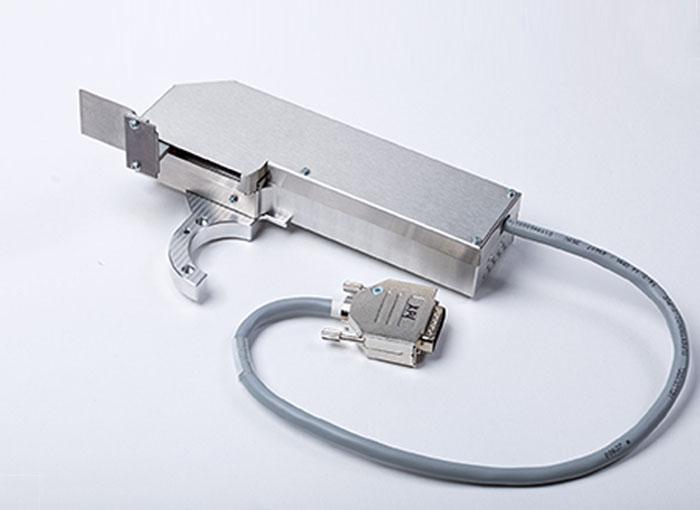

The automated knife-edge collimator is a precision beam-conditioning device that provides
intelligent control of X-ray beam parameters through software integration.
Key functions include:
- Active Noise Reduction System
- Motorized blades eliminate scattered radiation with micron-level precision
- Adaptive positioning compensates for sample-induced fluorescence and air scattering
- Smart Area Irradiation
- Programmable beam footprint from 0.1 mm to 20 mm with 100 μm reproducibility
Advanced Features:
- Remote operation via diffractometer software
- Position feedback for repeatable experimental setups
- Compatibility with all standard XRD geometries (Bragg-Brentano, parallel beam, GIXRD)
Features:
- Adjustable distance between the knife edge collimator and the analyzed surface: 0 to 40 mm
- Automatic adjustment depending on the 2θ angle
- Simple installation
