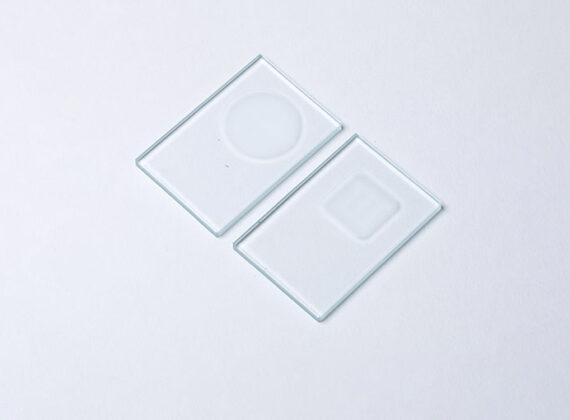

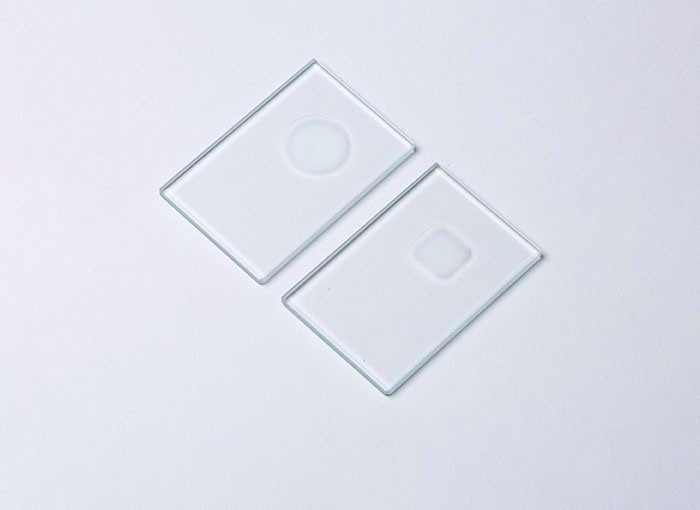

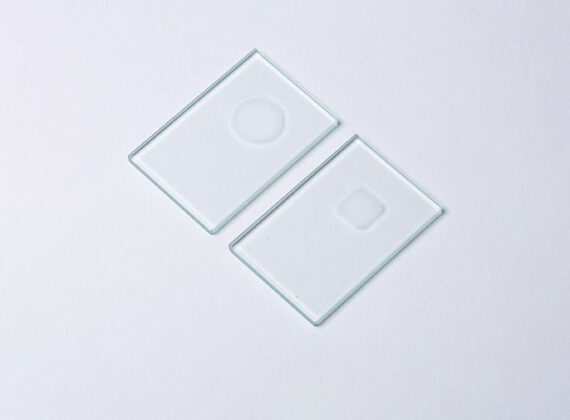

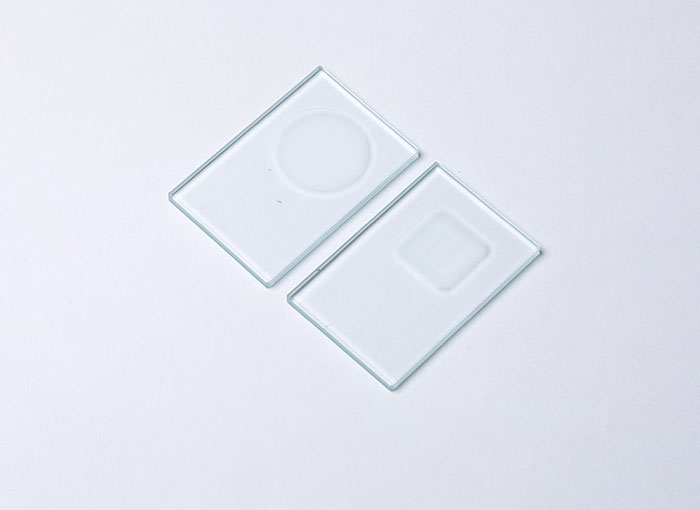

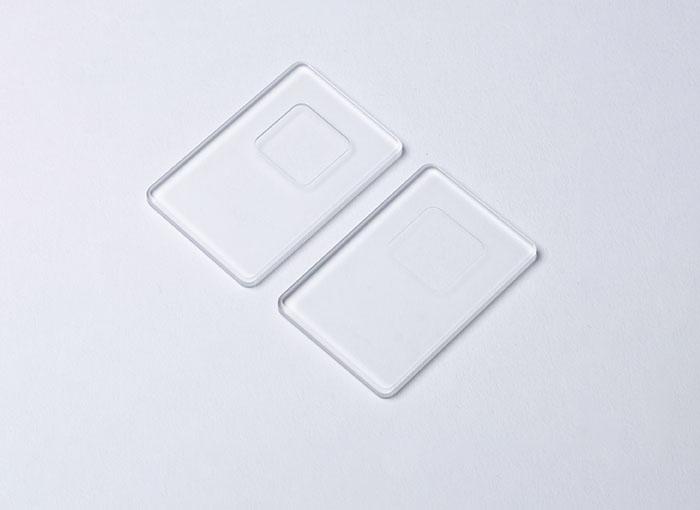

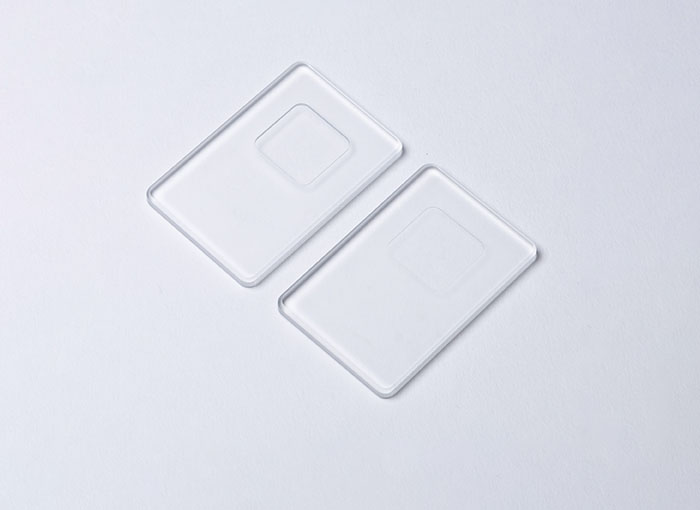

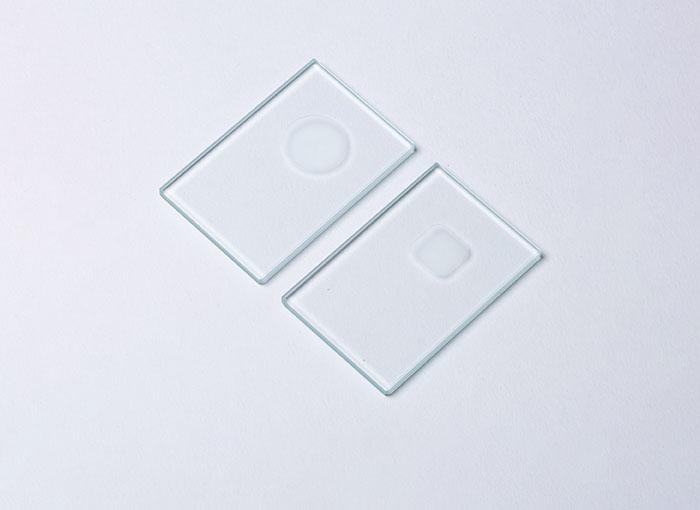

Cuvette for direct powder filling

LOT #C1001 | Cuvette for direct powder filling with adjustable depth and choice of rectangular or circular recess.

Cuvette for direct powder filling

Description

The cuvette is designed for direct filling of powdered samples, with the option of pre-leveling.
The volume of the test sample can be adjusted based on the desired depth.

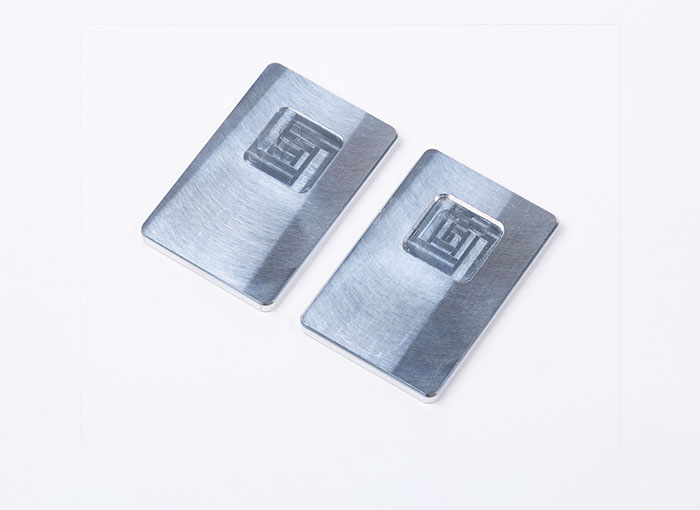

The standard version is crafted from aluminum, but alternative materials can be chosen
to suit specific customer requirements or the nature of the test samples.

Cuvette depth:

Rectangular shape
0.2 mm	Aluminum – Item No. 00.05.001-00 PMMA – Item No. 00.05.002-00 Glass – Item No. 00.05.005-00 Others – On request
0.5 mm	Aluminum – Item No. 00.05.001-01 PMMA – Item No. 00.05.002-01 Glass – Item No. 00.05.005-01 Others – On request
Circular shape
1.0 mm	Aluminum – Item No. 00.05.001-02 PMMA – Item No. 00.05.002-02 Glass – Item No. 00.05.005-02
0.2 mm	Aluminum – Item No. 00.05.008-00 PMMA – Item No. 00.05.006-00 Glass – Item No. 00.05.007-00 Others – On request
0.5 mm	Aluminum – Item No. 00.05.008-01 PMMA – Item No. 00.05.006-01 Glass – Item No. 00.05.007-01 Others – On request
1.0 mm	Aluminum – Item No. 00.05.008-02 PMMA – Item No. 00.05.006-02 Glass – Item No. 00.05.007-02

Features:

Recess shape: rectangular or circular
Material: aluminum, steel, glass, PMMA
Pit dimensions: 20×20 mm or ø 26 mm
Depth: 0.2 to 1.0 mm
