Description

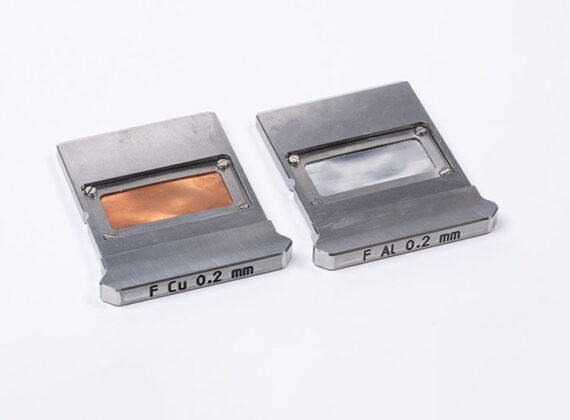

Attenuators made of copper or aluminum foil are used in XRD to control beam intensity.
Inserted into the filter socket, they reduce X-ray flux during alignment or sensitive XRR
measurements. Different foil thicknesses allow precise intensity adjustment, preventing
detector overload while maintaining measurement quality. Essential for protecting detectors
and optimizing data collection, they preserve beam geometry without affecting resolution.
Thickness:
|
0.050 mm |
Al – Item No. 07.02.100-07 |
|
0.075 mm |
Al – Item No. 07.02.100-08 |
|
0.100 mm |
Al – Item No. 07.02.100-09 |
|
0.125 mm |
Al – Item No. 07.02.100-10 |
|
0.150 mm |
Al – Item No. 07.02.100-11 |
|
0.175 mm |
Al – Item No. 07.02.100-12 |
|
0.200 mm |
Al – Item No. 07.02.100-13 |
|
Others |
On request |
Features:
- Installed on the detector arm
- Material: Cu, Al
- Attenuator material: 0.05 to 0.20 mm
- Simple installation and replacement
